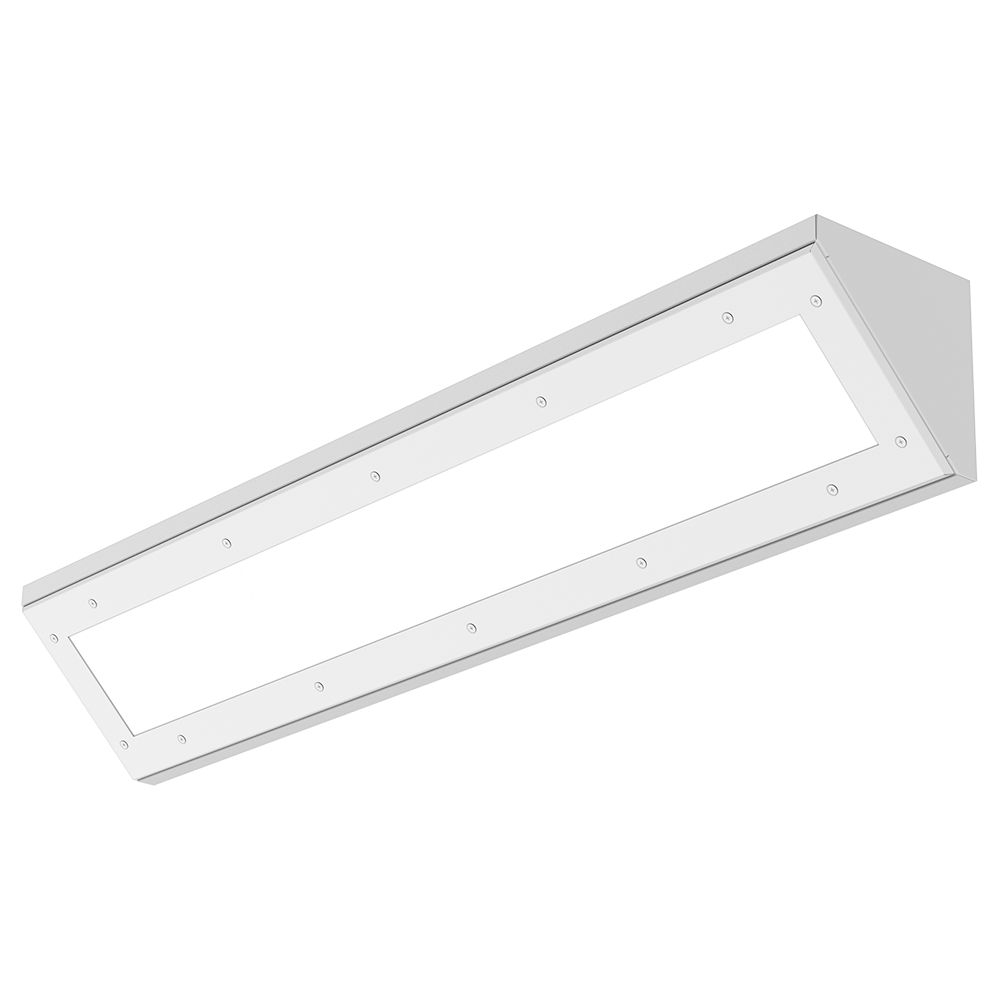

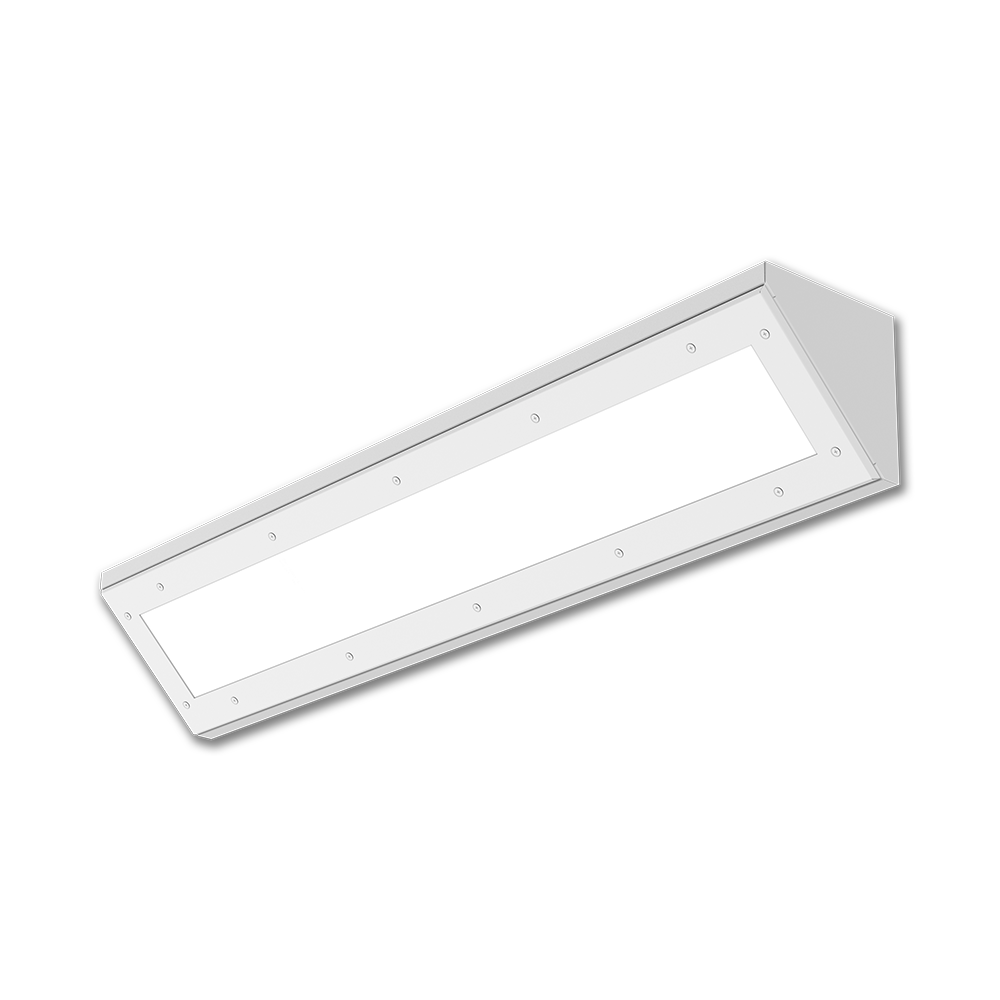

LED - Cleanroom Corner Mount

CRC-3519

Engineered for vermin proof performance in demanding environments, the CRC-3519 Cleanroom Corner Mount Luminaire by Certolux is a specification-grade LED fixture designed to meet the rigorous standards of cleanroom lighting. Its robust construction and IP65 rating make it ideal for facilities requiring contamination control, such as pharmaceutical labs, food processing zones, and medical cleanrooms. The corner-mount design ensures optimal space utilization while maintaining a sealed, hygienic profile.

Built with precision TIG-welded 18-gauge cold rolled steel, the CRC-3519 offers vandal-resistant housing that supports long-term durability. The inset door frame features a 60° beveled perimeter and is secured with military-grade fasteners and silicone o-rings, ensuring a continuous seal that resists intrusion from dust, moisture, and pests. This vermin proof design is further enhanced by vulcanized gasket corners and continuous retention mounts that evenly distribute pressure across the diffuser and seals.

The luminaire supports narrow spectrum lighting configurations, including red LED arrays for specialized applications. With lumen packages ranging from 2,600 to 10,400 and multiple CCT options (3000K to 5000K), it delivers tailored illumination for ISO 3–8 class cleanrooms. The tempered safety glass lens, optionally overlaid with prismatic acrylic, ensures both clarity and impact resistance. Additional lens materials such as polycarbonate and translucent acrylic are available to suit specific environmental needs.

Electrical performance is equally robust. The CRC-3519 integrates long-life LEDs with high-efficiency drivers rated for L80 performance beyond 60,000 hours. Standard low-voltage dimming (0–10V, 1%) and THD <10% ensure energy-efficient operation. Emergency battery pack options, including cold-weather and self-testing variants, provide reliable backup lighting. All components are CSA or UL approved, and wiring is simplified with a ½” EMT hole and sealed wireway options.

Certified to NSF2 for splash and non-food zones (with optional food zone certification), the CRC-3519 meets IEC 60529 IP65 standards and is RoHS compliant. Its cleanroom lighting capabilities, corner mount flexibility, and narrow spectrum options make it a standout solution for buyers seeking high-performance, hygienic illumination systems.

Whether you're upgrading an existing cleanroom or designing a new sterile environment, the CRC-3519 offers a reliable, efficient, and vermin proof lighting solution that meets stringent industry standards. Its modular options and rugged build make it a smart investment for long-term facility performance.

  • Vermin proof and IP65 rated: Sealed housing with vulcanized gaskets and military-grade fasteners prevents contamination and pest intrusion.
  • Corner mount design: Maximizes space efficiency while maintaining full cleanroom compliance for ISO 3–8 environments.
  • Narrow spectrum lighting options: Includes red LED arrays and multiple CCTs for specialized applications and visual comfort.
  • Cleanroom lighting performance: L80 >60,000 hours, low THD, and dimmable drivers ensure consistent, energy-efficient illumination.
  • Flexible lens and emergency options: Choose from tempered glass, acrylic, or polycarbonate lenses; emergency packs available for cold weather and extended runtime.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Healthcare,Hospitals

    Available Size(s) : 24",36",48"

    Brand : CER

    CRI : 80 - 89

    Certification : Built to CSA & UL Standards,ETL Listed (C/US),IP65,ISO Class 4,ISO Class 5,NSF component listed

    Color Temperature : 3000K,3500K,4000K,5000K

    Fixture Type : Cleanroom,Corner,Surface

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 1001-1500,2001-3000,3001-4000,5001-10000,10001-20000

    Market : Cleanroom & Containment
