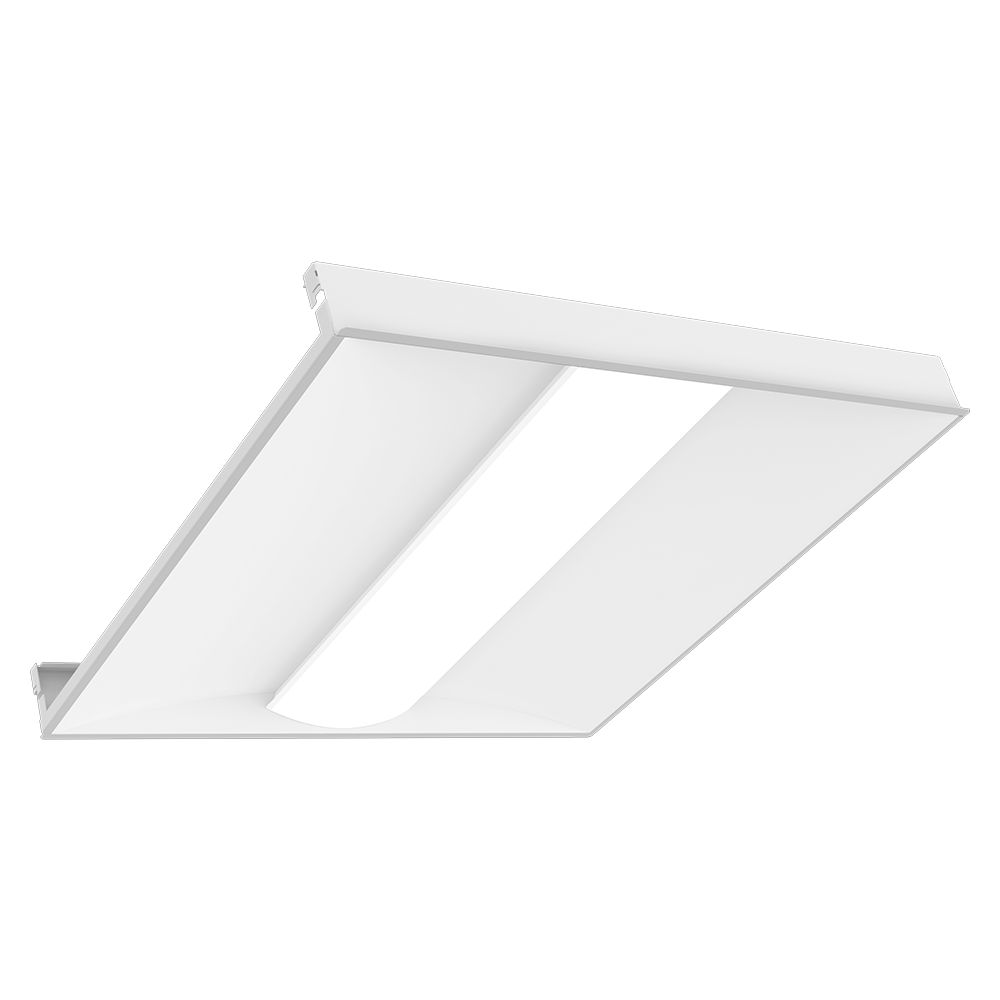

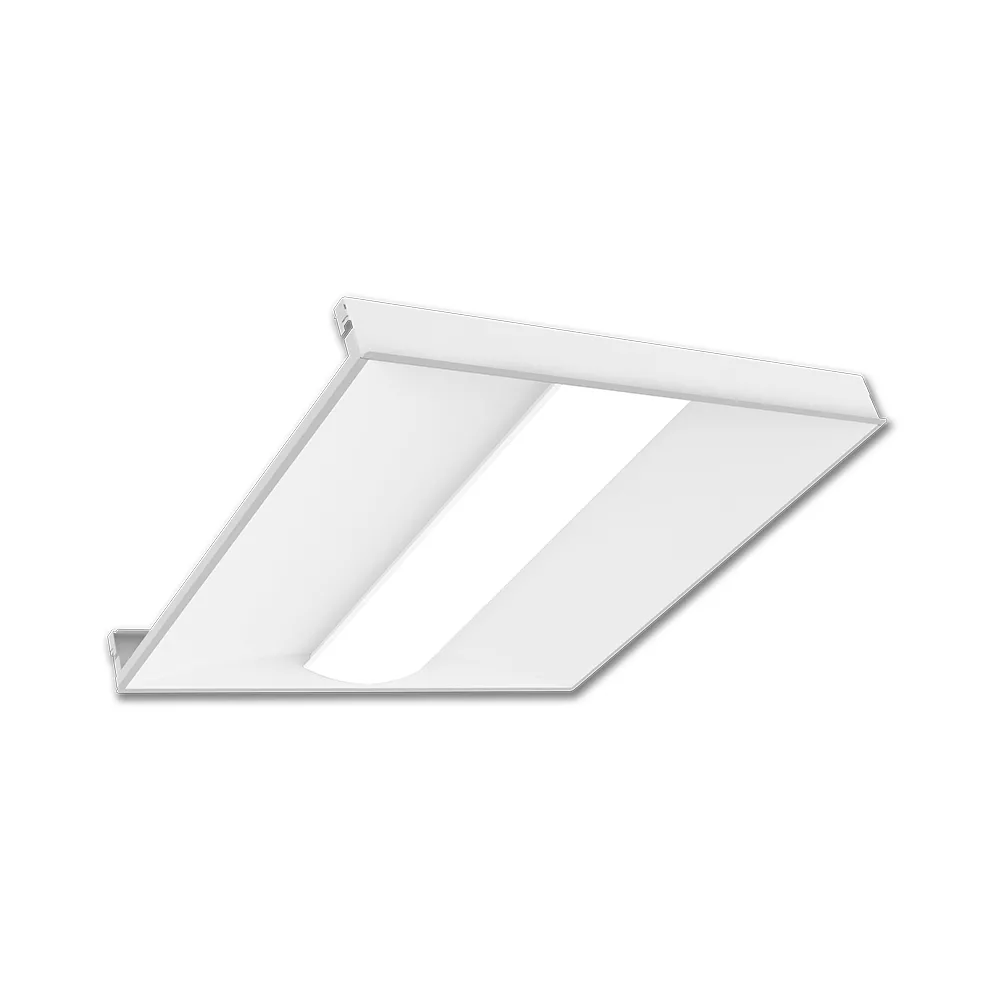

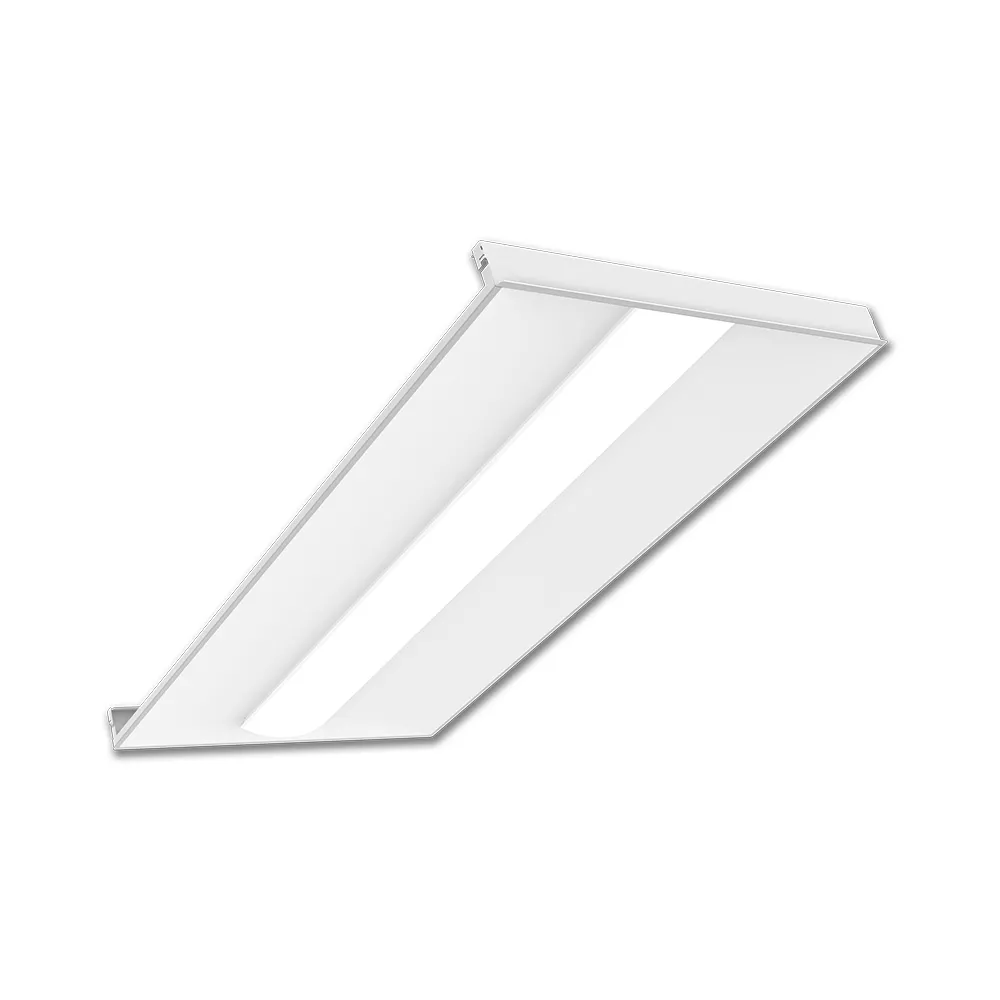

LED Troffer Dish Low Profile Diffuser

LRTF

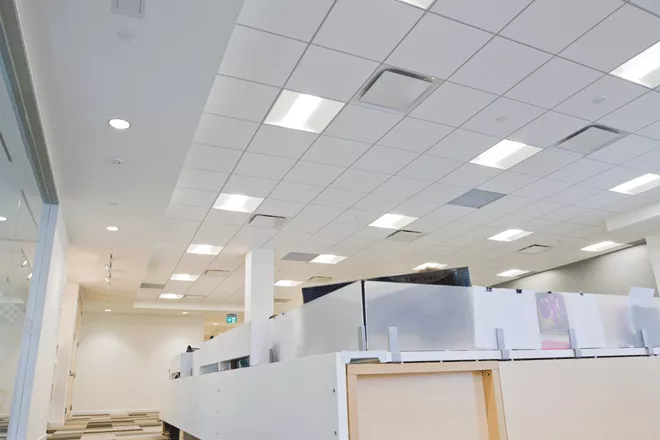

When it comes to architectural LED lighting, the LRTF recessed fixture delivers a smart, efficient solution for modern commercial interiors. Designed for shallow or obstructed plenum spaces, this recessed light fixture features a shallow elliptical center lens that provides soft, uniform illumination across workspaces, corridors, and public areas. Whether you're outfitting offices, classrooms, or healthcare environments, the LRTF combines performance, flexibility, and ease of installation in one low-profile package.

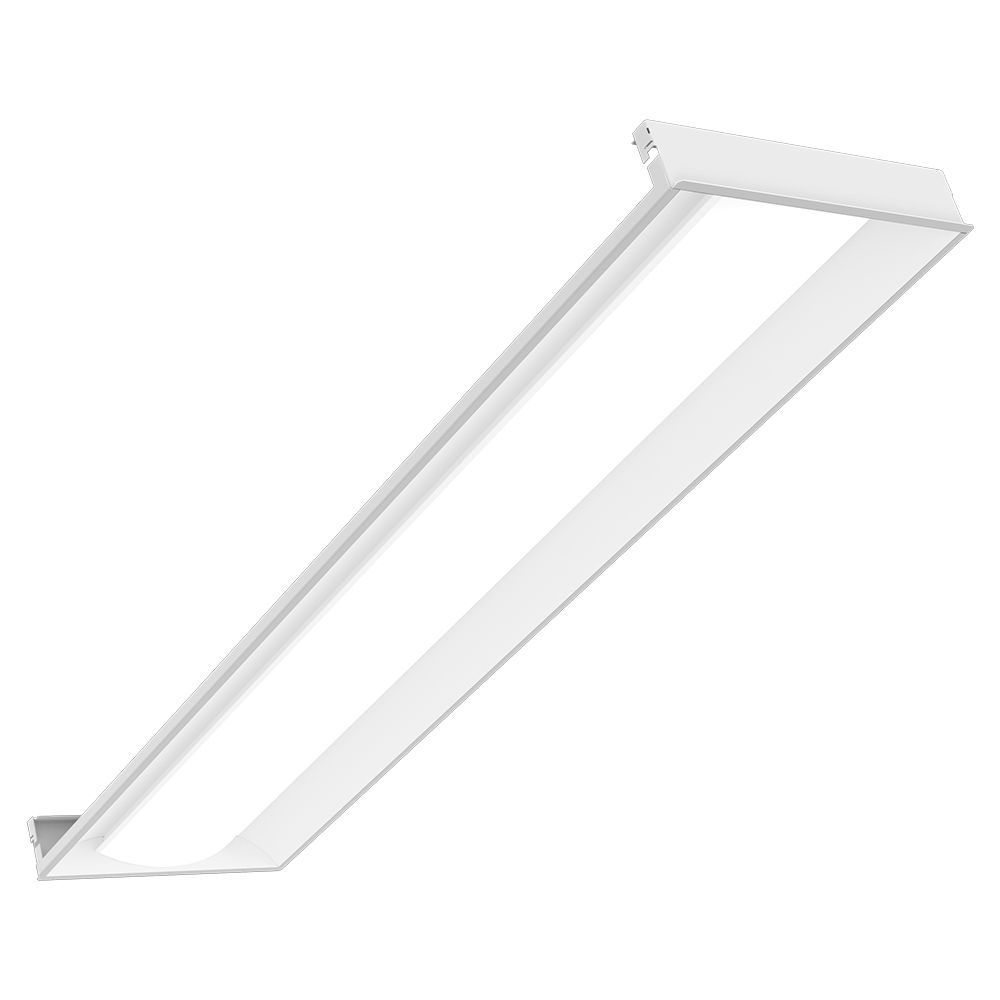

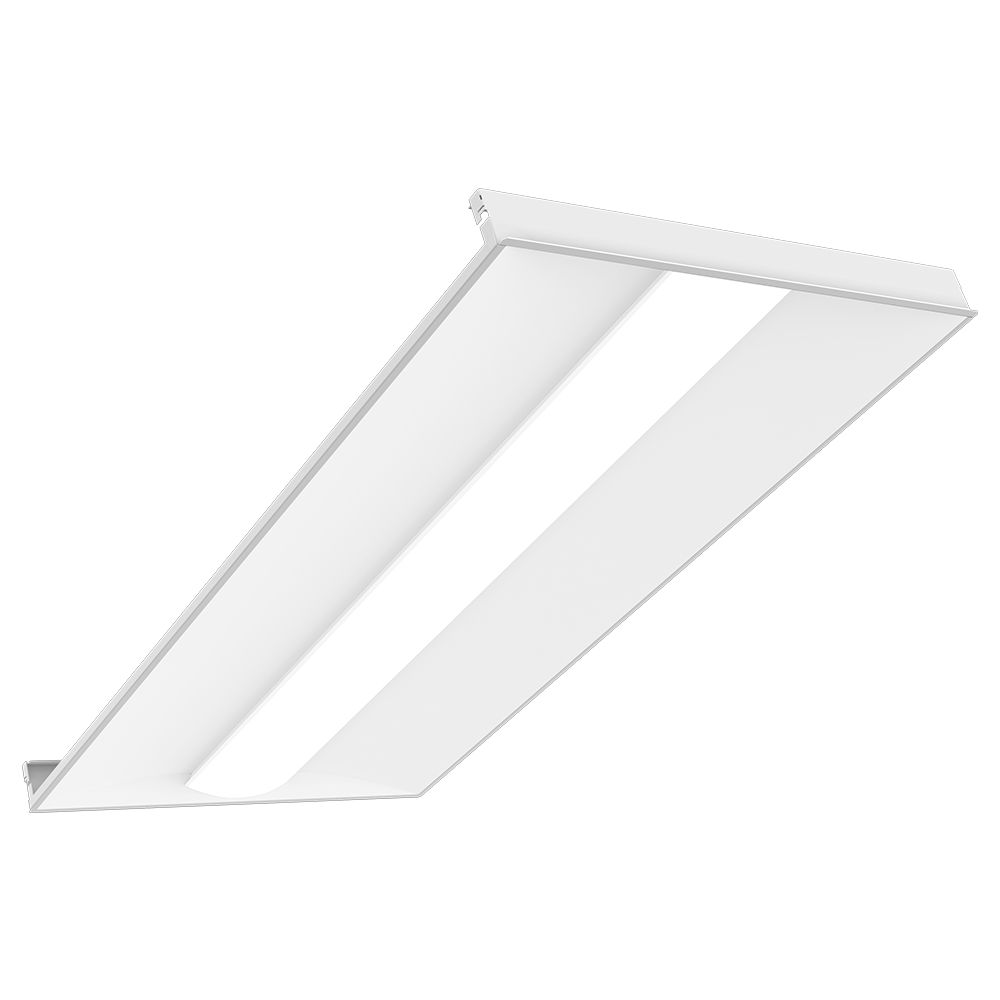

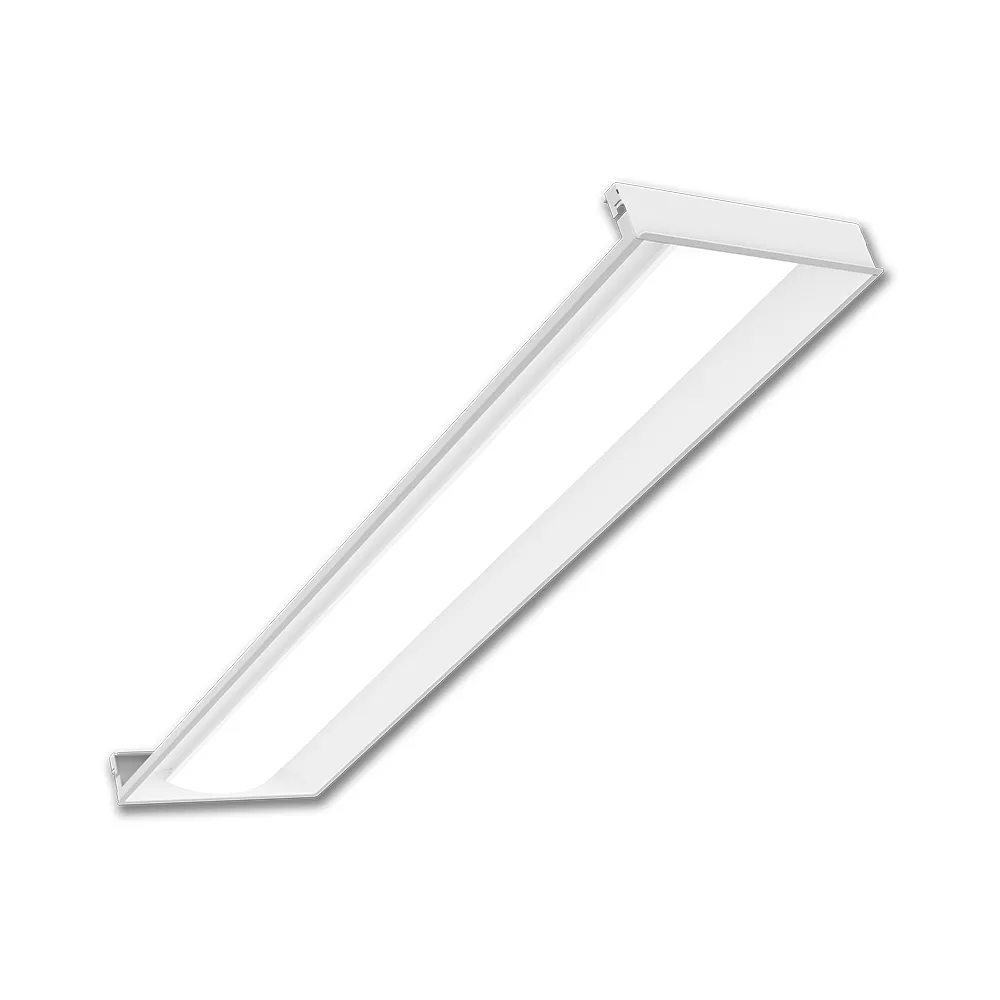

One of LRTF’s standout features is its adaptability. It’s available in stand 1x4, 2x2 and 2x4 range of sizes including fixture available in non-standard sizes like 20x60, 30x30, 750x750, and 500x1500 making it ideal for projects with unique ceiling layouts or retrofit constraints. The frosted ribbed acrylic diffuser enhances visual comfort while maintaining high light output, and the precision-formed indirect reflectors ensure low-glare, wide-spread illumination. This makes the LRTF a top choice for designers seeking both aesthetics and performance in architectural LED lighting.

Built with a heavy-gauge steel housing and finished in white polyester powder coat, the LRTF is as durable as it is sleek. It’s IC-rated for use in insulated ceilings and includes room-side access to the driver compartment for easy maintenance. The fixture supports 0–10V dimming and is compatible with tunable white controls, offering dynamic lighting options for environments that demand flexibility. With lumen packages ranging from 1600 to 7000 and efficacy ratings exceeding 150 lumens per watt in many configurations, the LRTF delivers long-term energy savings and consistent performance.

Installation is straightforward thanks to its T-Bar mounting design and integral earthquake clips. The fixture is approved to CSA/UL standards, suitable for damp locations, and DesignLights Consortium® qualified in select models. Optional features include emergency battery packs, air handling slots, and various lens overlays to meet specific project needs. With a rated L80 lifetime of over 60,000 hours and a 5-year limited warranty, the LRTF is a reliable, future-ready solution for demanding commercial applications.

In summary, the LRTF recessed light fixture offers a compelling blend of form and function. Its shallow elliptical center lens, broad size availability—including fixture available in non-standard sizes—and high-efficiency performance make it a standout in the architectural LED lighting category.

  • Shallow elliptical center lens provides soft, low-glare illumination ideal for offices, classrooms, and healthcare settings.
  • Fixture available in non-standard sizes like 20x60, 30x30, 750x750, and 500x1500 for maximum design flexibility.
  • Architectural LED lighting solution with high efficacy (up to 150+ LPW) and lumen packages from 1600 to 7000.
  • Recessed light fixture with IC rating, room-side driver access, and compatibility with tunable white controls.
  • Optional features include emergency battery packs, air handling slots, and multiple diffuser overlays.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Classroom,Corridor,Hospitals,Office,Retail Store,Data Centers

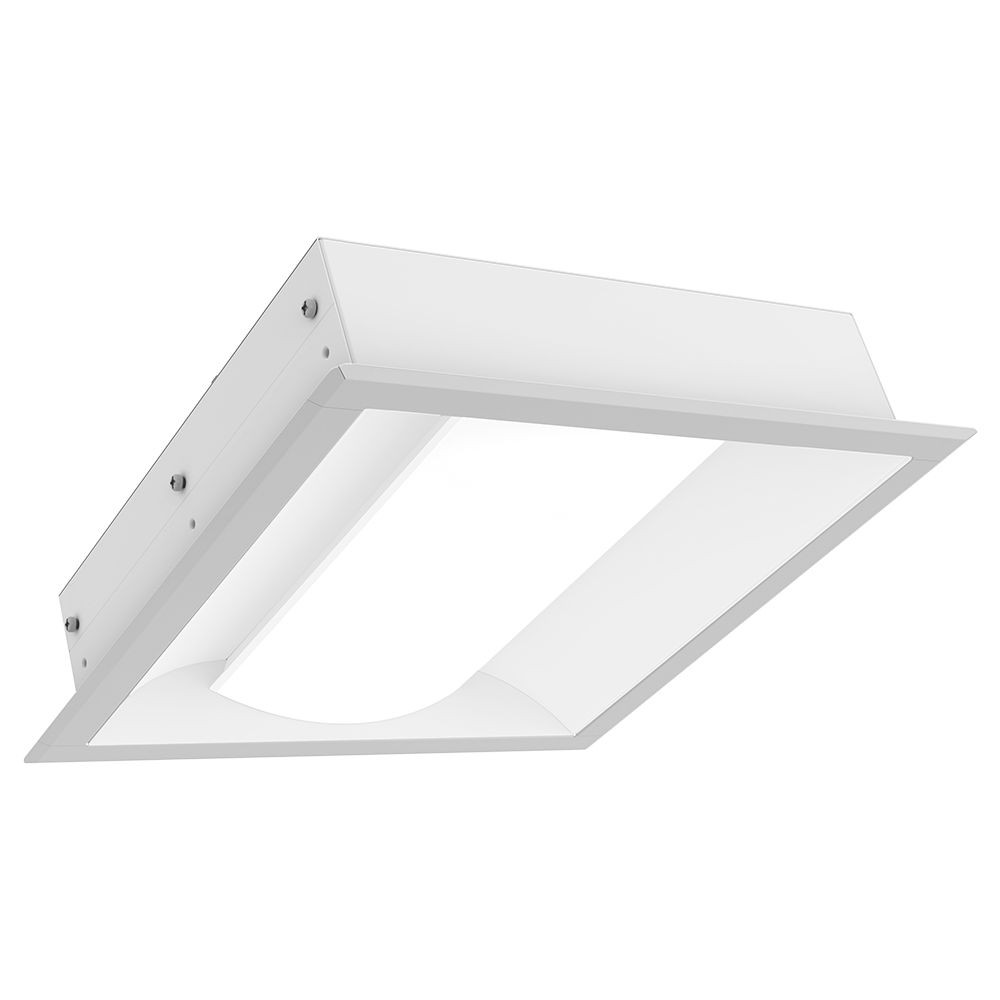

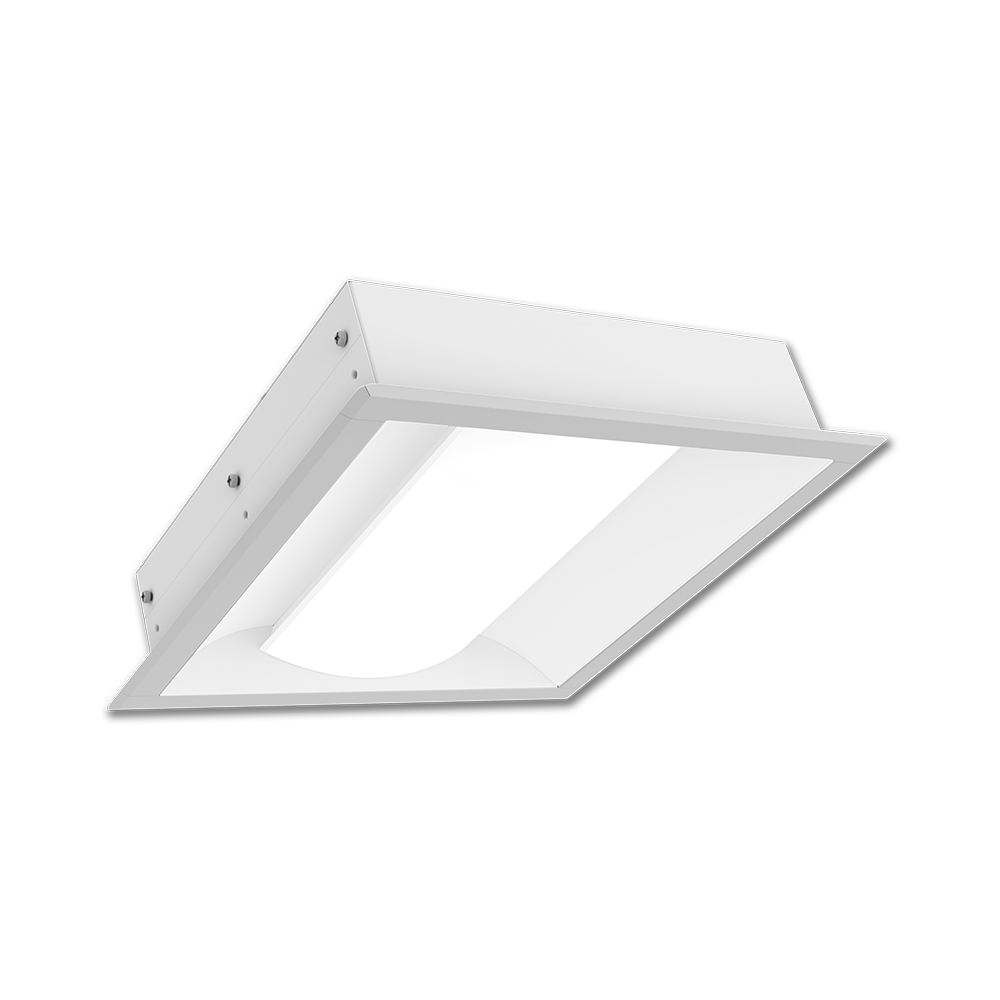

    Available Size(s) : 1x1,1x4,2x2,2x4,20x60,30x30,750x750,500x1500

    Brand : VIS

    CRI : 80+,90+

    Certification : RoHS Compliant,DLC Listed,,Damp Location,IESNA LM-79

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Low Plenum,T-Bar,Recessed,Troffer,Metric

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 1600,3800-5000,4000-7000

    Market : Healthcare,Commercail,Education,General Area
