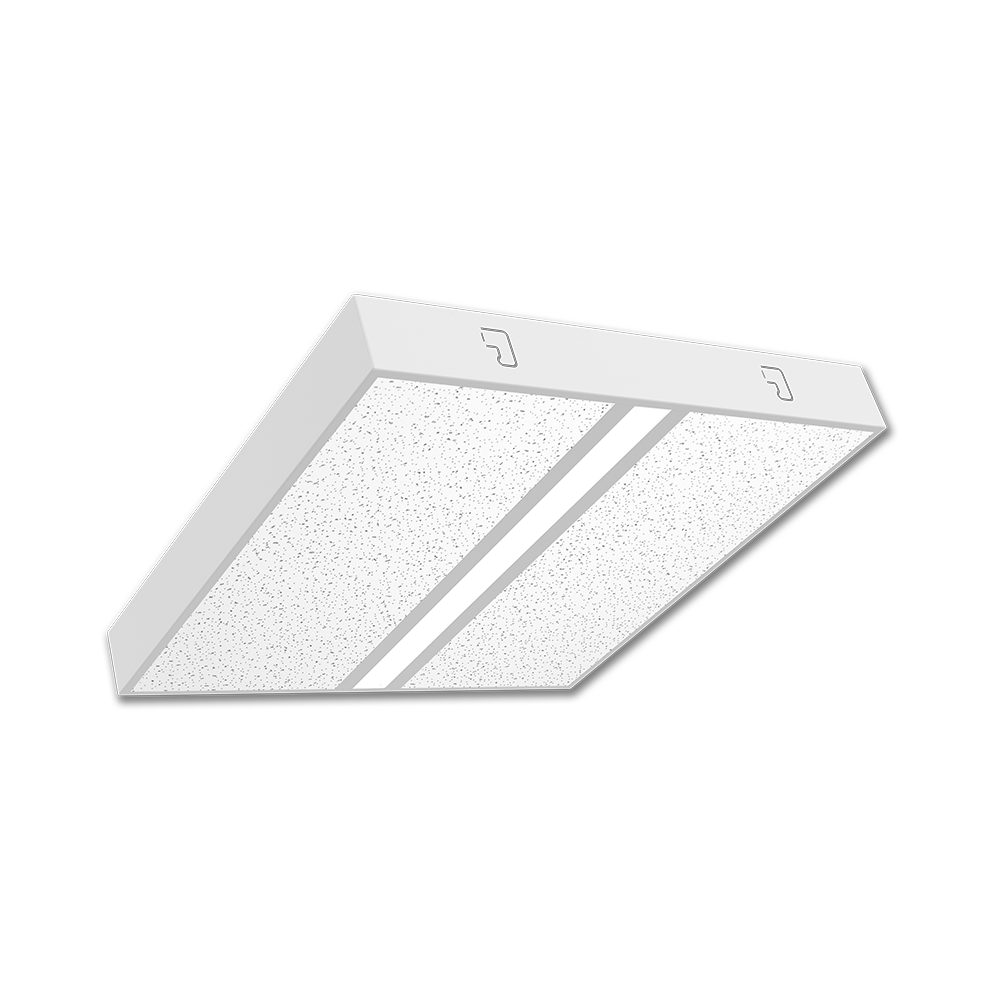

LED Recessed Troffer – Outline™ Type I Architectural Fixture

OTLI

Modern lighting meets geometric precision with the OUTLINE™ Type I (OTLI) LED recessed light fixture. Designed to deliver enhanced, uniform illumination, this geometrically shaped luminaire is ideal for contemporary architectural environments that demand both style and performance. Its angular design and continuous lens create a sleek visual impact while ensuring low-glare, high-quality lighting across workspaces, walls, and surfaces.

Built for versatility, the OUTLINE™ Type I excels in office areas, retail stores, and classrooms—anywhere architectural LED lighting is needed. The recessed light fixture features a frosted, laser-formed one-piece diffuser that balances efficiency with visual comfort. Its IC-rated, low-profile design makes it perfect for shallow or obstructed plenum spaces, while integral earthquake clips provide added support in T-Bar ceiling applications. The die-formed steel housing and precision-formed reflector ensure durability and consistent performance.

Customization is a key strength. The fixture supports tunable white options (2700K–6500K), multiple lumen packages (500 to 3000 lm/ft), and voltage configurations (120–277V or 347V). It also integrates seamlessly with advanced controls, including Casambi and Lutron wireless modules, and offers emergency battery pack compatibility. Whether you need dimming, color tuning, or wireless control, the OUTLINE™ Type I adapts to your lighting strategy.

Efficiency is built into every detail. Long-life LEDs paired with high-efficiency drivers deliver L80 performance beyond 60,000 hours, with lumen outputs reaching up to 3008 lm and efficacy up to 108 lm/W. The fixture is CSA/UL approved, suitable for damp locations, and tested to IESNA LM-79 standards. Optional flange and surface kits expand installation flexibility, while the white polyester powder finish ensures a clean, modern aesthetic.

Whether you're designing a new space or upgrading an existing one, the OUTLINE™ Type I offers a refined lighting solution that blends form and function. Its continuous lens and recessed profile make it a standout choice for professionals seeking architectural LED lighting that performs as beautifully as it looks.

The OUTLINE™ Type I delivers the performance, flexibility, and style your project demands—without compromise.

  • Geometrically shaped design with angular accents and a continuous lens for modern visual impact.
  • Recessed light fixture optimized for T-Bar ceilings, featuring integral earthquake clips and IC-rated construction.
  • Continuous lens diffuser provides uniform, low-glare illumination ideal for offices, retail, and classrooms.
  • Architectural LED lighting with tunable white (2700K–6500K), multiple lumen packages, and wireless control options.
  • High efficiency and longevity, delivering up to 108 lm/W and L80 performance over 60,000 hours.
Country of Origin: Canada

Product Information

  • Product Specifications

    Application : Aisle,Cafeteria,Display,Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality,Library,Restaurant,Showroom,Supermarket

    Available Size(s) : 2x2

    Brand : VIS

    CRI : 80+ , 90+

    Certification : Built to CSA & UL Standards,Damp Locations,IESNA LM-79

    Color Temperature : 3000K,3500K,4000K,5000K,2765KT

    Fixture Type : Architectural,Recessed,Troffer,T-Bar

    Grade : Specification Grade

    Light Source : LED

    Lumen Output : 500-1500,1000-3000

    Market : Commercial,Education,Healthcare
