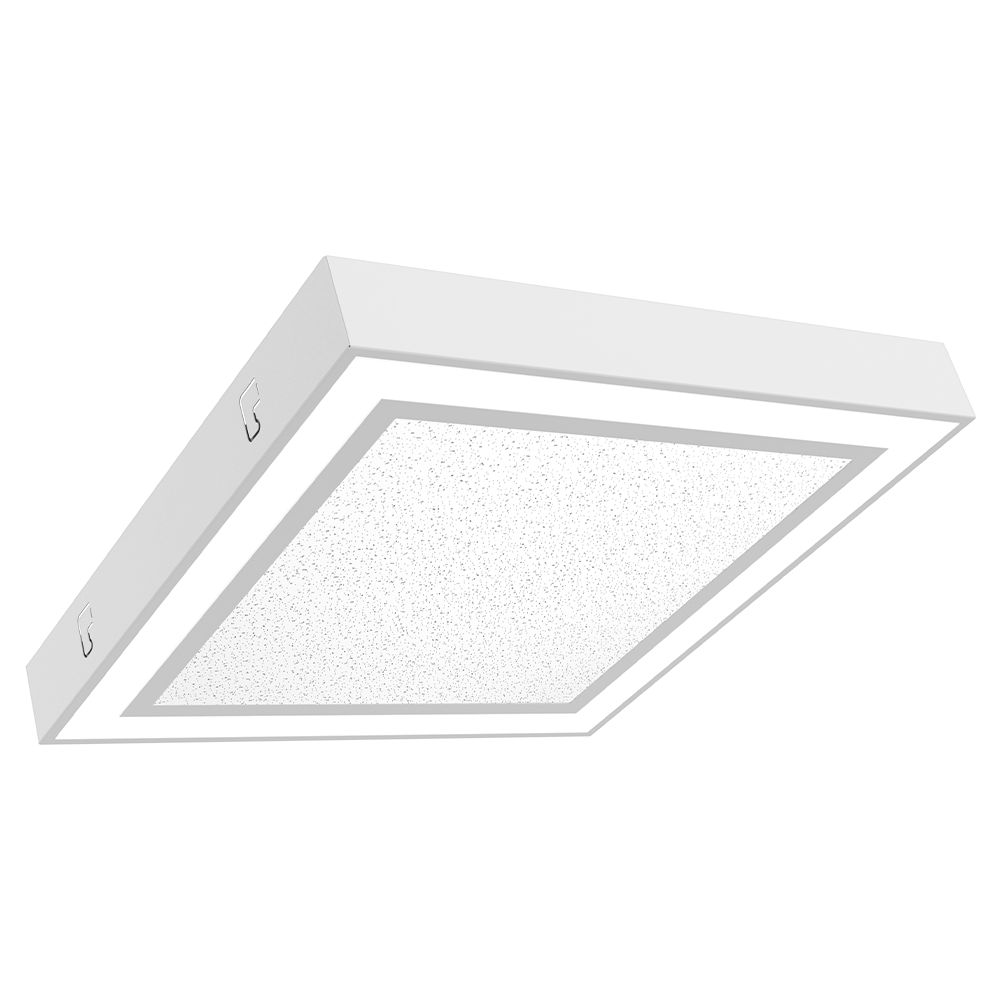

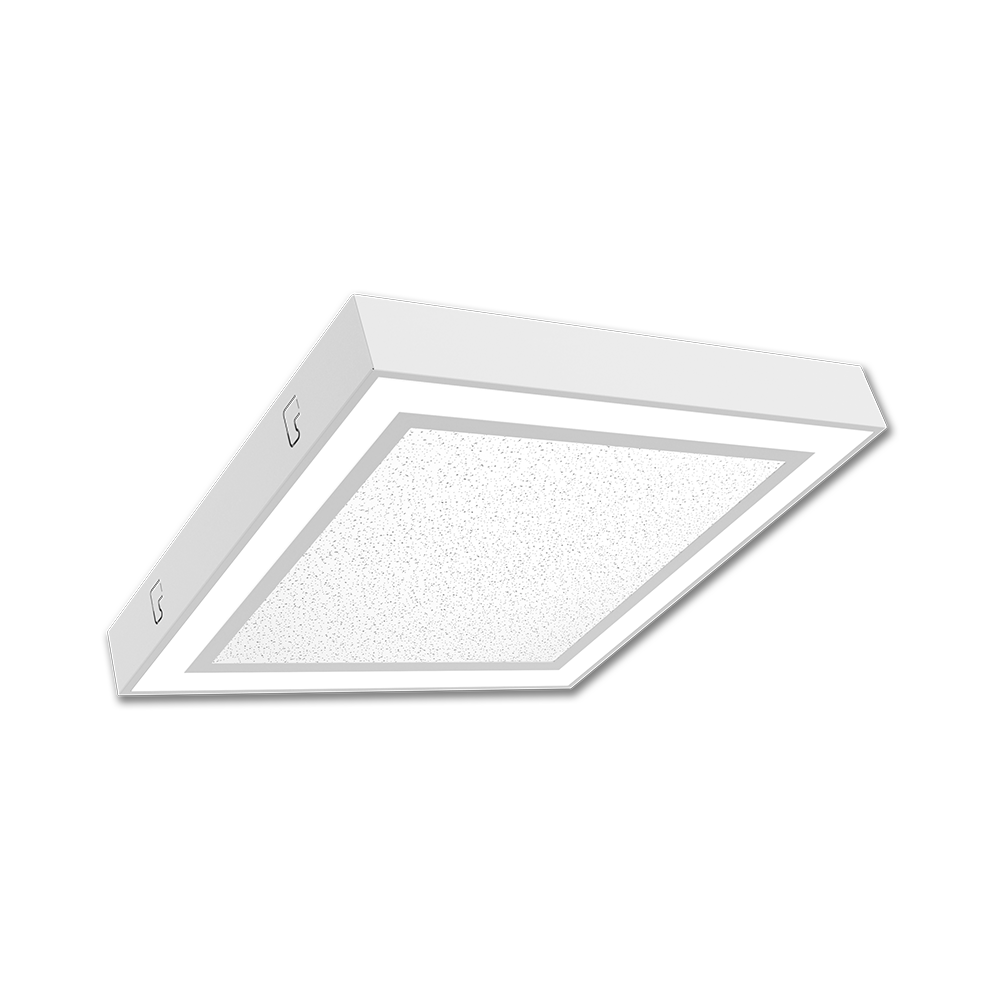

LED Recessed Troffer Outline™ Type O – Architectural Fixture with Continuous Lens
OTLO
The OUTLINE™ Type O (OTLO) LED recessed light fixture brings geometric elegance to modern architectural spaces. With its angular design and continuous lens, this geometrically shaped luminaire delivers uniform, low-glare illumination ideal for offices, classrooms, and retail environments. Designed for both performance and aesthetics, it enhances visual comfort while maintaining a sleek, low-profile presence in T-Bar ceiling applications.
Built for versatility, the OUTLINE™ Type O is a specification-grade recessed light fixture that combines durable construction with advanced lighting technology. Its die-formed steel housing and precision reflector ensure consistent light distribution, while the frosted, laser-formed diffuser minimizes glare and maximizes efficiency. Rated for insulated ceilings and suitable for damp locations, it’s a reliable solution for demanding indoor environments.
The fixture’s standout feature—a single continuous lens—creates a clean, uninterrupted ceiling design that complements contemporary interiors. Available in lumen packages from 2000 to 6000 lumens, it supports tunable white technology (2700K–6500K) for dynamic lighting control. Optional wireless modules from Casambi and Lutron enable smart integration, making it easy to tailor lighting to specific tasks or moods.
Installation is streamlined with integrated earthquake clips and flexible mounting options, including surface and flange kits. The low-profile design is ideal for shallow or obstructed plenums, offering adaptability without compromising performance. Long-life LEDs paired with high-efficiency drivers deliver L80 performance beyond 60,000 hours, with calculated L70 lifespans exceeding 238,000 hours—ensuring minimal maintenance and long-term value.
Whether you're outfitting a collaborative workspace or a retail setting, the OUTLINE™ Type O LED fixture offers a refined blend of form and function. Its architectural LED lighting design supports energy efficiency, visual comfort, and modern aesthetics, making it a smart choice for professionals seeking reliable, stylish illumination.
Ready to upgrade your lighting with precision and style? The OUTLINE™ Type O delivers high-performance recessed lighting with a geometrically shaped design that fits seamlessly into today’s architectural environments.
- Geometrically shaped design with angular accents and a continuous lens for modern architectural appeal.
- High-performance recessed light fixture rated for insulated ceilings and suitable for damp locations.
- Tunable white technology (2700K–6500K) and wireless control options for customizable lighting environments.
- Efficient and long-lasting LEDs deliver up to 6000 lumens with L80 performance >60,000 hours.
- Easy installation with integrated earthquake clips and flexible mounting kits for shallow plenum spaces.
Product Information
Product Specifications
Application : Aisle,Cafeteria,Display,Office,Retail Store,Classroom,Hospitals,Nursing Homes,Hospitality,Library,Restaurant,Showroom,Supermarket
Available Size(s) : 2x2
Brand : VIS
CRI : 80+,90+
Color Temperature : 3000K,3500K,4000K,5000K,2765KT
Fixture Type : Architectural,Recessed,Troffer,T-Bar
Grade : Specification Grade
Light Source : LED
Lumen Output : 2000-6000
Market : Commercial,Education,Healthcare
Certification : Built to CSA & UL Standards,IESNA LM-79,Damp Locations
